| Reference standard: | EN8564SP, ISO3862-14SP |

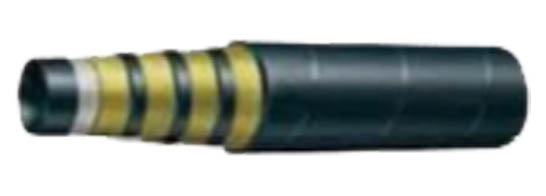

| Construction: | Tube: Oil resistant synthetic rubber blend. Reinforcement: 4Spiral Layer of High Tensile steel wire. Cover: Oil, weather, abrasion resistant synthetic rubber blend. |
| Working temperature | Forhydraulicfluids: -40 ℃ to + 100 ℃ / -40℉ to + 212℉. Upto 120℉ / 248℉ maximum for 10% of total working hrs. |
| Exception: Air:max+ 70 ℃/158 ℉ FandWater:max+ 85 ℃/ 185℉ | |
| Application: | Heavy duty impulsive high pressure hydraulic applications like excavators,dosers,dumpers, cranes,compactors,rockbreakers, hydraulic drillrigs & other construction equipment's. |
| Recommended fluids: | Suitable for petroleum based hydraulic fluids,synthetic esters,bio degradable hydraulic fluids,water glycol based fluids & air. |
| Features: | Qualified for 1 million impulse cycle which is more than twice to relevant standard requirements.Good flexibility for compact hydraulic circuits.Good weather & ozone resistance. |
| Note: | Service temperature in excess of 100 ℃/212℉ and MBR lower than recommendation may materially reduce life of the hose. 1.0 Mpa = 10bar, 1.0 Mpa = 145 psi, 1bar = ~1.0 kg /cm' Bend radius measured at inside of bend. |
